Home > Products > UVC LED > UV LED 275nm 20 chips Light 210X12mm UV LED Strip Lamp Deep UVC Diode Ultraviolet Lamp

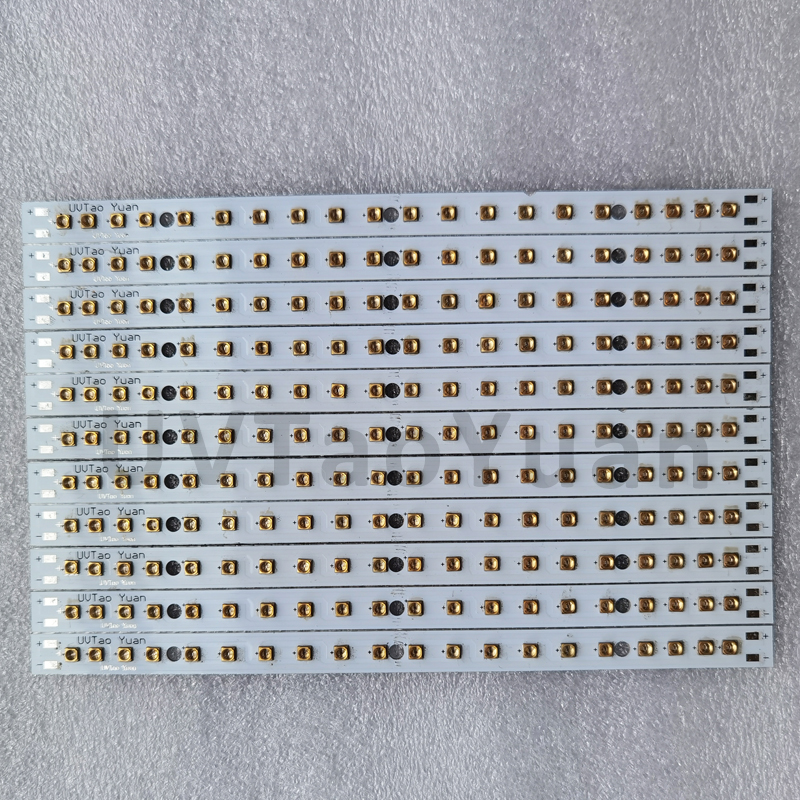

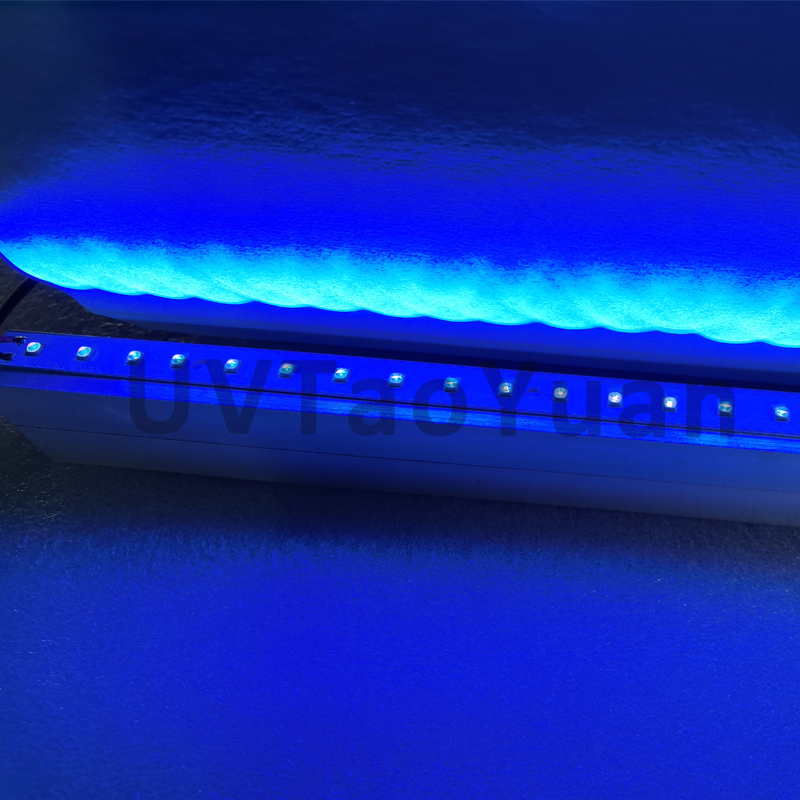

UV LED 275nm 20 chips Light 210X12mm UV LED Strip Lamp Deep UVC Diode Ultraviolet Lamp

Product Description

Product Description
Specification
Parameter
Value
WP
275nm
Mechanical Dimensions
210*12*1.6mm
LED qty
20pcs
Voltage
DC10-15V
Current
600-1000mA
Optical Power
340-500mW
Deep UV LED 275 nm Features:
Adopt 1.6 thick 210*12mm aluminum base heat sink, 20pcs LED 2 string 10 and line voltage: 10-12V current: 600mA
Efficient: sterilization and disinfection effect can reach 99.9% in a short time
Energy saving: 80% energy saving compared to traditional cold cathode lamps
Environmental protection: common harmful substances in metal-free gas illuminating technology
The service life is up to 10,000 hours.
Instant start, high frequency switch.

Deep ultraviolet LED 275nm use precautions:
a. Do not touch the front of the LED to avoid affecting the normal illumination of the device.
b. The positive and negative electrodes must be confirmed before turning on the power device. Reverse connection will damage the device.
c. Strictly follow the electrical parameters provided by our company. If the voltage is too high, it may damage the device.
d. Under the working condition of deep ultraviolet LED, it should avoid observing the illumination with close eyes.

PCB Dimensions(Unit:mm):
Deep ultraviolet LED 275nm parameters:
